HaveInsights FlowCraft
FlowCraft · Live demo

FlowCraft Proof Slider

Drag the handle across the image to compare before and after. This demo runs the same app.js that comes with the paid slider.

Sample images. Northline Plumbing is a made-up business used to show the slider. You replace both images with your own project photos.

Try it

  1. Drag the handle. With a mouse, or with a finger on a phone. Scrolling up and down still works.
  2. Click or tap anywhere. The handle glides straight to that spot.
  3. Or use the keyboard. Tab to the handle, then use the arrow keys, Home or End.

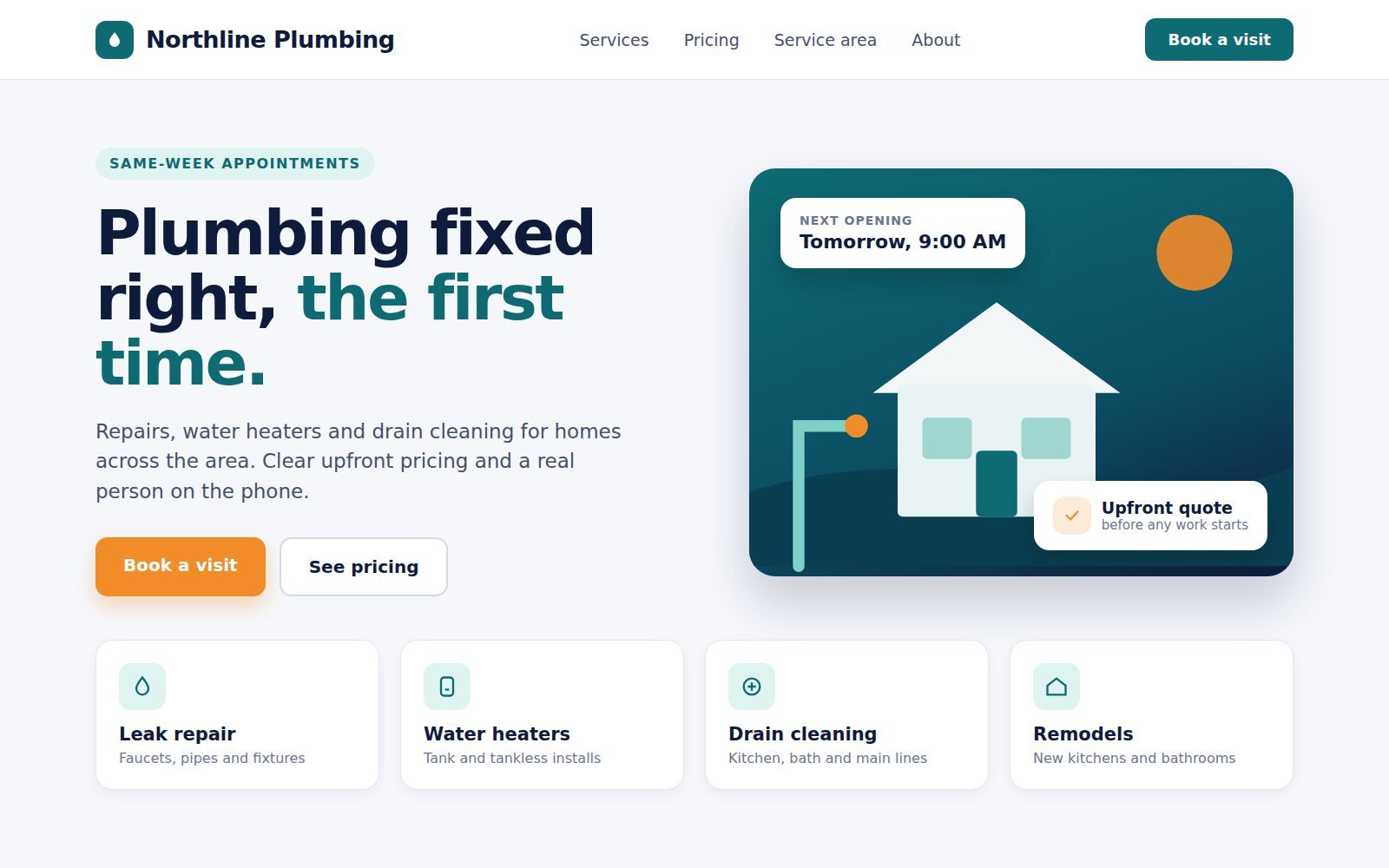

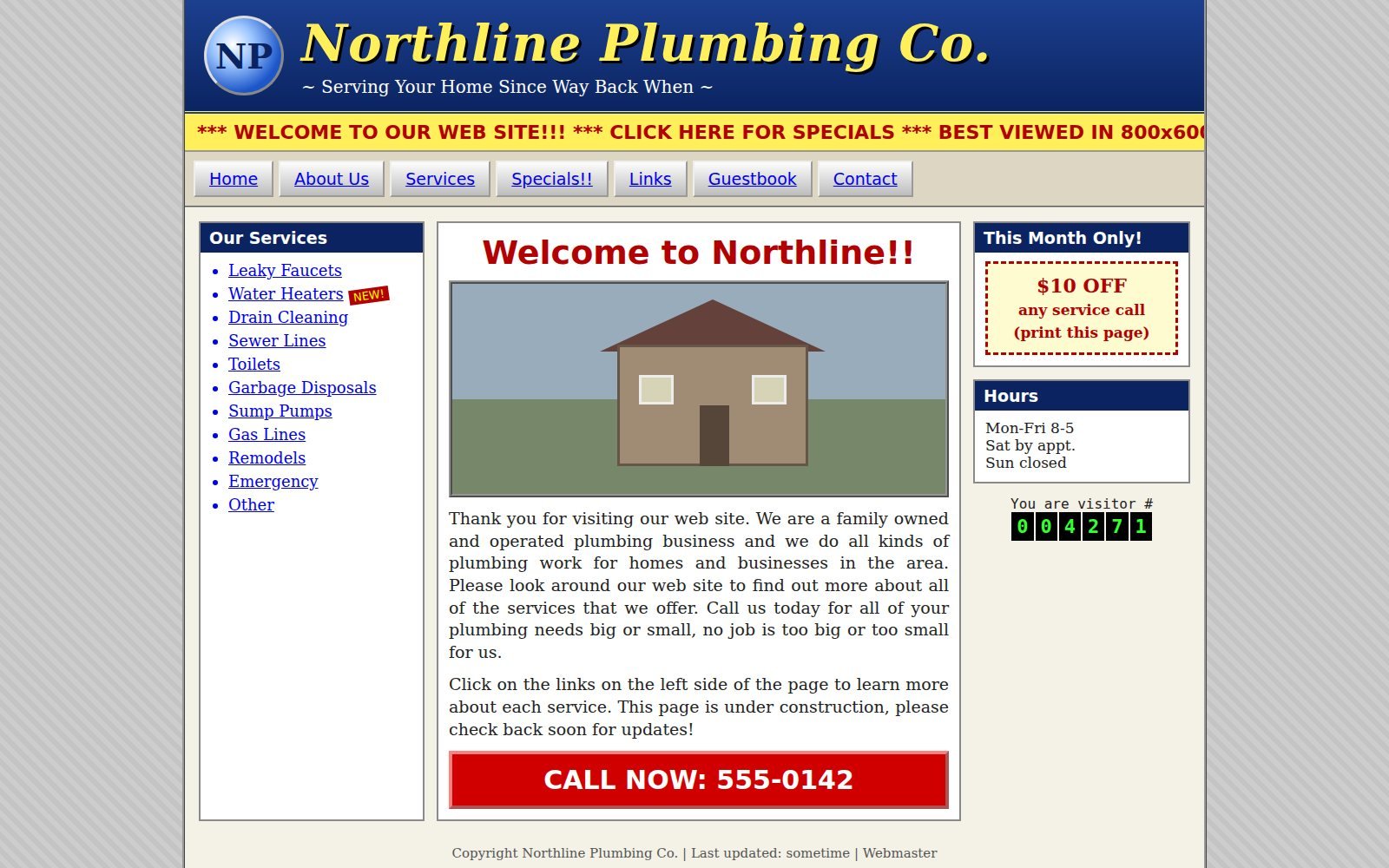

After: the redesigned Northline Plumbing website with a clean layout and clear booking buttons Before: the original Northline Plumbing website with a dated, cluttered layout Before After
Northline Plumbing · website redesign (sample)Drag the handle to compare

We'll reply with ideas and a quote for your project.

How it works

How the slider follows your pointer

Both images sit on top of each other. The top one is trimmed from the right with CSS clip-path, so the bottom one shows through. The math is in app.js, commented step by step.

  1. Find the pointerMouse and touch events report how far the pointer is from the left edge of the window.
  2. Measure from the imageSubtract where the image starts, then divide by its width to get a percentage from 0 to 100.
  3. Trim the top imageAt 70%, inset(0 30% 0 0) hides the right 30% of the before image, and the handle moves to 70%.

Example: the pointer is 700px from the window's edge and the image starts at 200px and is 800px wide. (700 − 200) ÷ 800 = 0.625, so the handle sits at 62.5%.

function percentFromClientX(stage, clientX) {
  const rect = stage.getBoundingClientRect();
  const offsetX = clientX - rect.left;
  const percent = (offsetX / rect.width) * 100;
  return clamp(percent, 0, 100);
}
Working in percentages rather than pixels keeps the slider correct when the window is resized or a phone is rotated.

What the full version includes

Delivered as a ZIP download through Payhip, with an optional .htaccess for Apache/Hostinger caching.

  • index.htmlThe slider markup, styled with Tailwind CSS
  • app.jsMouse, touch and keyboard logic (pointer math commented step by step) and the quote form
  • style.cssHandle, focus ring and glide effects
  • assets/images/before.jpg and after.jpg samples to replace with your own

Requirements

  • Any web host, or none. The slider also runs when index.html is opened directly from your computer.
  • Two images of the same size and framing. Replace before.jpg and after.jpg, or point the two <img> tags at your own files.
  • A form endpoint to receive leads (optional). Any service that accepts a JSON POST, for example Formspree, Make or Zapier. Until you add one, the quote form sends nothing and says so.
  • An internet connection for visitors. Tailwind CSS loads from its public CDN.
  • No npm install or build step. Upload the files and the slider runs.

Get the Proof Slider

Start with the free static shell to check the layout, or get the full version with the working slider you just tried.

Free

Free Static HTML Shell

The slider's layout and markup with the sample images, fixed at the halfway point, so you can review the design in your own project.

  • Complete visual layout and sample images
  • Sample structure and markup
  • Does not include the drag, touch or keyboard logic
Try the Free Static Shell

Opens the free download on Payhip.

Full version

Full Proof Slider — $67

The working before-and-after slider you just tried, ready for your own project photos.

  • Drag with a mouse or finger, click to jump, or use the arrow keys
  • Built-in "Get a Free Quote" form sends visitor leads to your form service
  • Swap in your own images by replacing two files
  • No build step: HTML, Tailwind CSS (via CDN) and vanilla JavaScript
Buy the Full Proof Slider — $67

Checkout and download are handled by Payhip.

Back to the FlowCraft catalogue to see the other components.
